Industrial & workshops
Structure with crane rails
A portal frame built with crane rails carried on the columns.
- Sector
- Industrial & workshops
- Manufactured
- Spartan, Kempton Park

This structure carries crane rails down its sides. Supporting an overhead crane is a different engineering problem from supporting a roof — the columns take moving vertical load plus the lateral surge of a crane stopping and starting, so the frame is designed for it from the outset.
Retrofitting crane capability into a frame that was not designed for it is expensive and often impossible. If there is any prospect of a crane, it belongs in the brief at enquiry stage.
Considering something similar? Read more about warehouses & storage, or see the standard sizes.
More industrial & workshops
Related projects.

Industrial & workshops40m wide
40m wide steel structure
A 40m wide structure carried on an internal row of columns, the widest configuration in the range.

Industrial & workshops9 × 20m

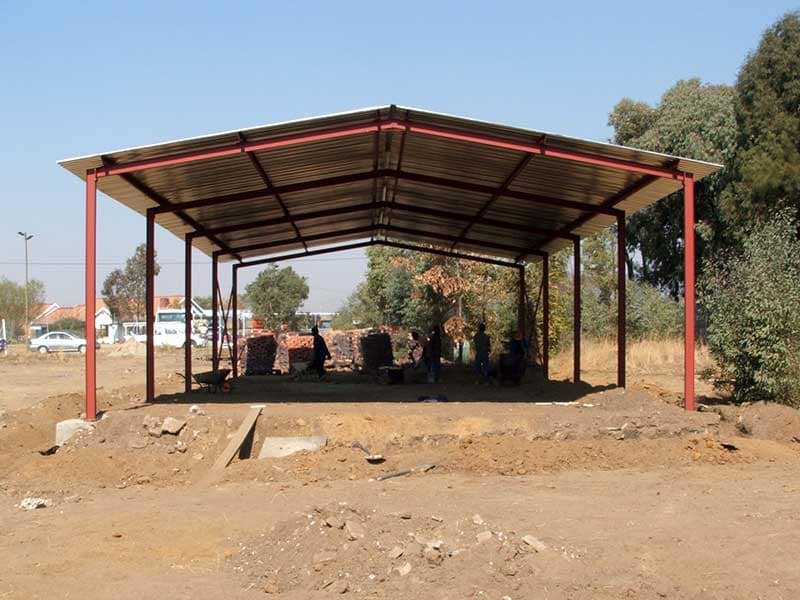

Standard 9 × 20m portal frame
